Type Conversion

In RhinoBommon API, you often need to convert between different types of geometric objects. This is because different operations are available for different types of objects.

For example, a Rhino.Geometry.Box object represents a box in 3D space. It has properties like Plane, X, Y, Z that represent the orientation and dimensions of the box. However, it doesn’t have methods for more complex operations like boolean operations, offsetting, etc.

In order to have such operations, a box is needed to be converted to Rhino.Geometry.Brep

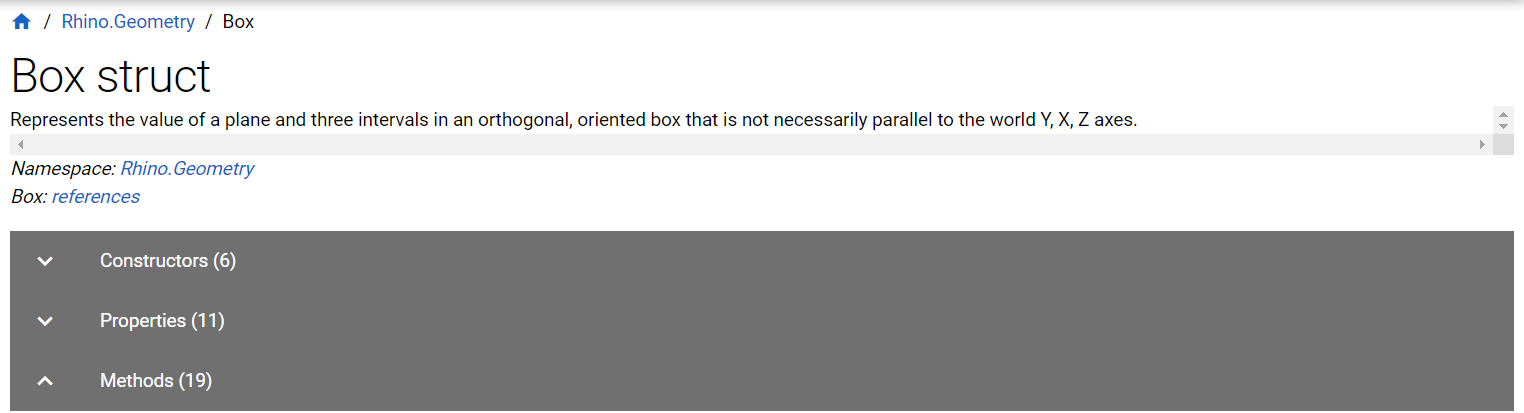

API Documentation for Box Struct

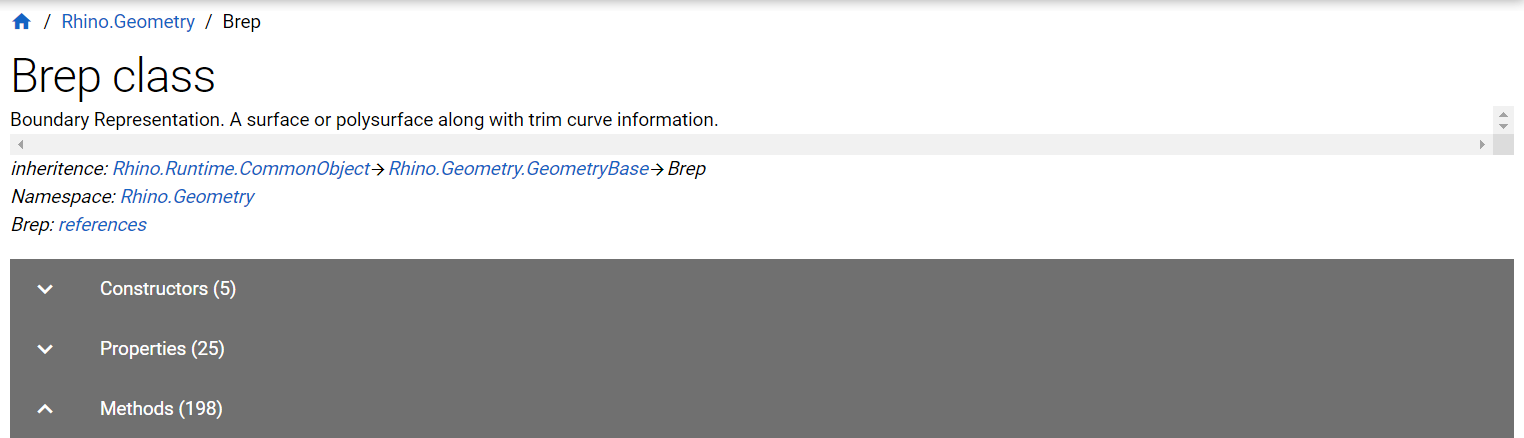

API Documentation for BREP Class

In the above images taken from the RhinoCommon Documentation we can see the different number of methods and propeties be accessed for each type

To convert a Rhino.Geometry.Box to a Rhino.Geometry.Brep, you can use the ToBrep method of the Box class:

import Rhino.Geometry as rg

# Create a box
box = rg.Box(rg.Plane.WorldXY, rg.Interval(-1, 1), rg.Interval(-1, 1), rg.Interval(-1, 1))

# Convert the box to a brep
brep = box.ToBrep()
